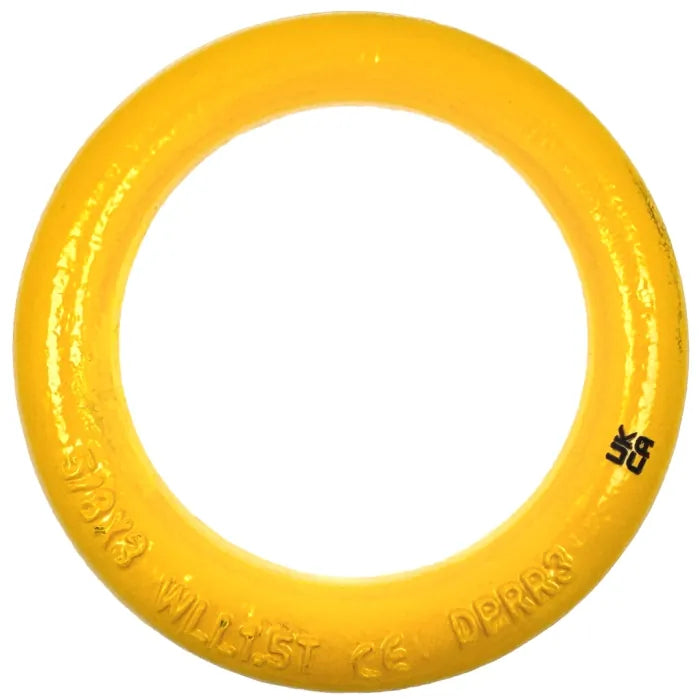

Grade 80 Drop Forged Round Ring - Yellow Finish

Name: Grade 80 Drop Forged Round Ring - Yellow Finish
Brand: RiggFix
SKU: 285-13-1
Price: 1.68 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

RiggFix SKU: 285-13-1

1 2

Grade 80 Drop Forged Round Ring - Available with WLL of 0.5t, 1.0t, 1.5t, 2.5t. 3.3t and 5.0t Available in diameter 2" through to 5 & 1/2" Commonly use in slings and other... Read More

£1.68

Sale TODAY'S PRICE £1.68

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

Grade 80 Drop Forged Round Ring -

Available with WLL of 0.5t, 1.0t, 1.5t, 2.5t. 3.3t and 5.0t
Available in diameter 2" through to 5 & 1/2"
Commonly use in slings and other lifting applications.
Also known as master ring.

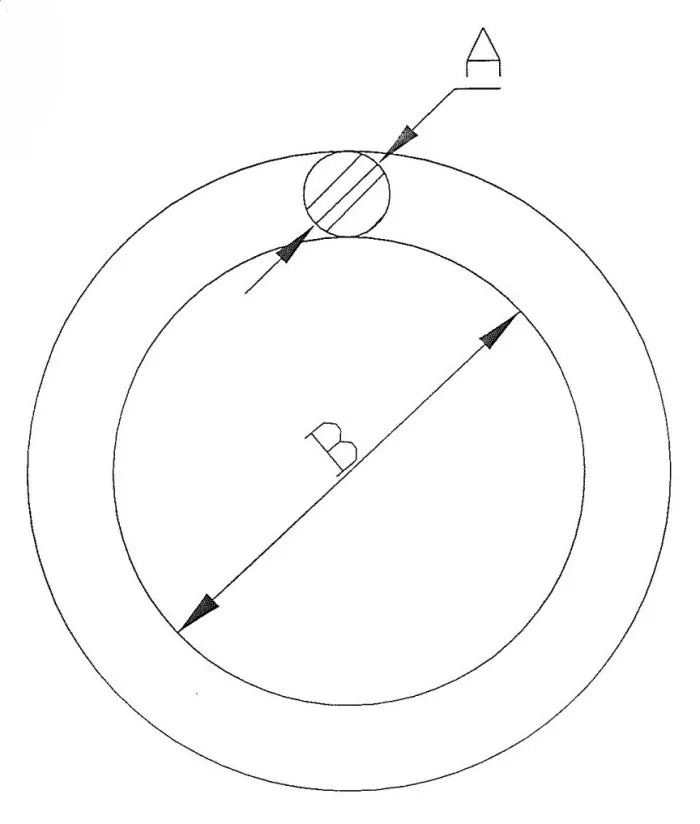

Specification

d	D	W.L.L	Weight
3/8"	2"	0.50t	0.11kg
1/2"	2"	1.00t	0.21kg
5/8"	3"	1.50t	0.46kg
3/4"	4"	2.50t	0.84kg
7/8"	4"	3.30t	1.20kg
1"	5 1/2"	5.00t	2.00kg

Downloads

Product data sheet

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

would this be ok for a mooring on the beach to connect 3 chains together with shackles. im currently using a big shackle but ive heard a ring might be a better option. ian

Yes as long as you select the correct size it will be fine.
