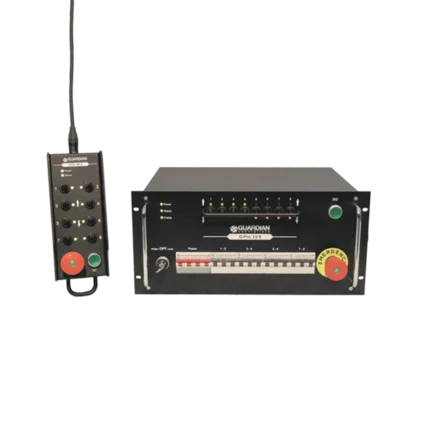

G-Pro 12 Way Rack Mounted Low Voltage Touring Hoist Controller KIT
This G-Pro 12 Way Kit includes Main 19" Rack Mount, 12 Way Remote Hand with 15m of Cable, 3 x Power and 3 x Control Break Outs (19 Pin Soca to 4 Pin CEE)
- 12 channels of linkable control housed in a 5U 19” rack mounted enclosure
- 12 channel controller power input - 63A, 400V, 3Ph - Outputs power and control via Socapex connectors- 3 for power, 3 for control each to 4 x 16am p 4 PIn CEE
- Local control or via optional digital remote handset
- Linkable GO & E-stop network for linked systems
- Remote in/ link secure digital network via Neutrik 7 Pin XLR connector
- Switchable between pickle/or auto enable mode
- Automatic phase correction
- Automatic voltage check
- LED GO button & channel direction
- LED status/error check
- Optional load cell alarm input link to E-stop
- Works with any G-Pro remote handset but limited by max channels on handset/controller
- CE certified
DIGITAL REMOTE HANDSET FOR G-PRO SERIES
- Aluminium enclosure
- Neutrik 7pin XLR connector
- Toggle switches with dust/ water resistant covers
- LED GO button & channel direction
- LED status/ error check
- Acts as a master GO & E-stop in linked systems
- Works with any G-Pro series controller but limited by max channels on handset/controller
