FIBERGLASS ROD Ø 7,5 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM

£493.21

SKU :123-1-10

Length
Rod Ø

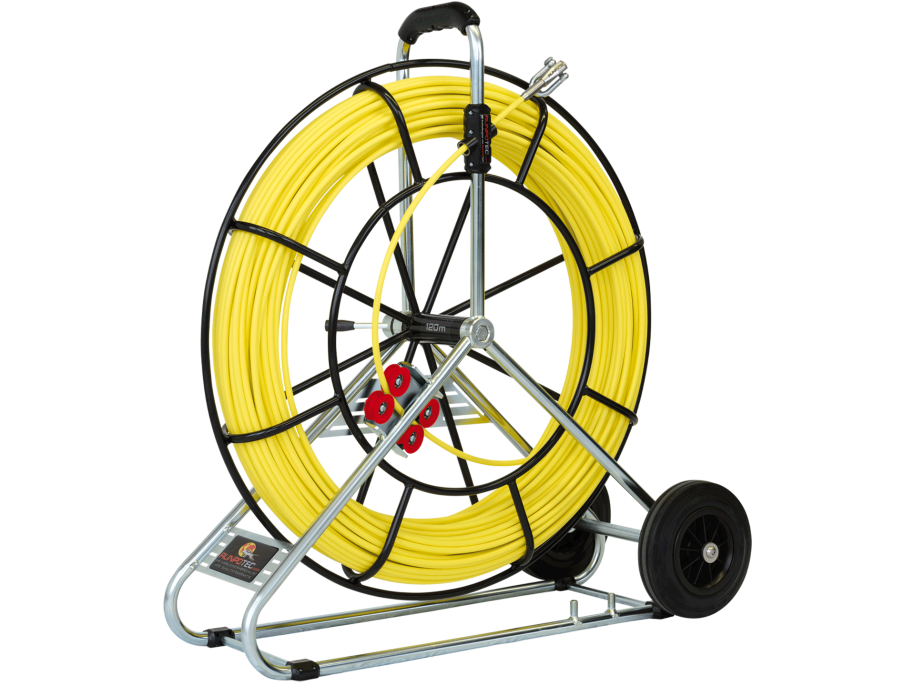

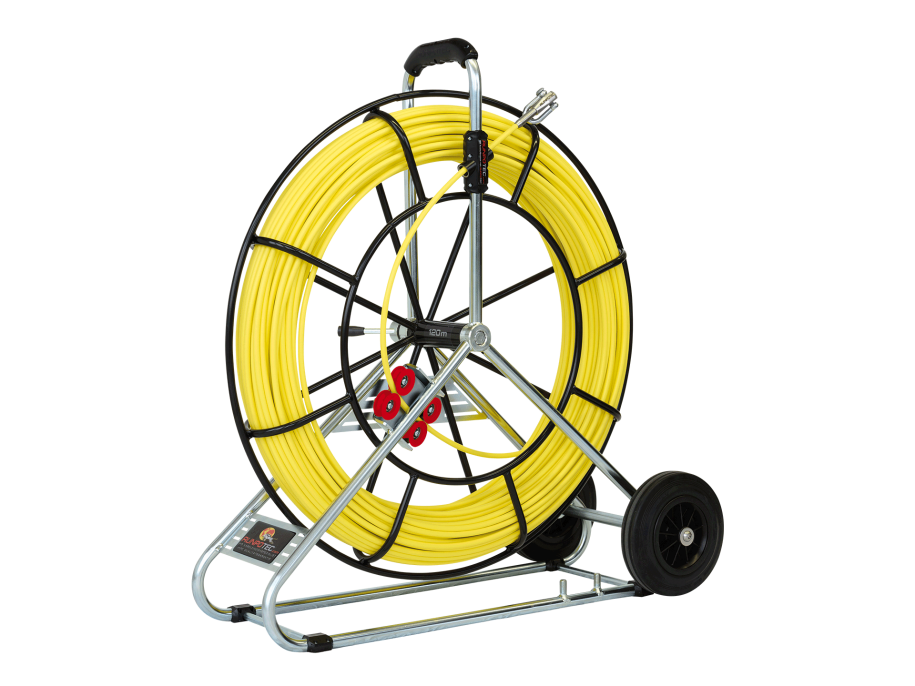

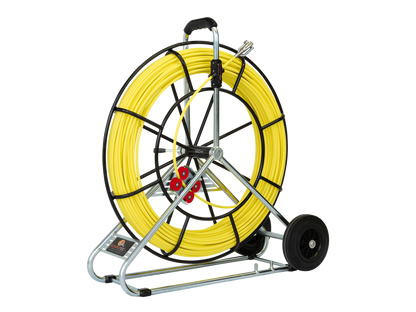

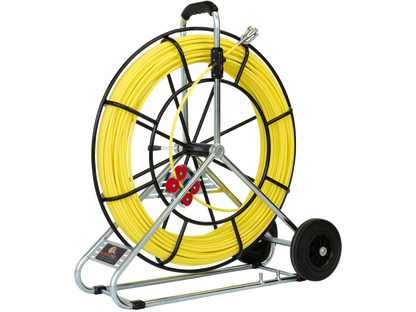

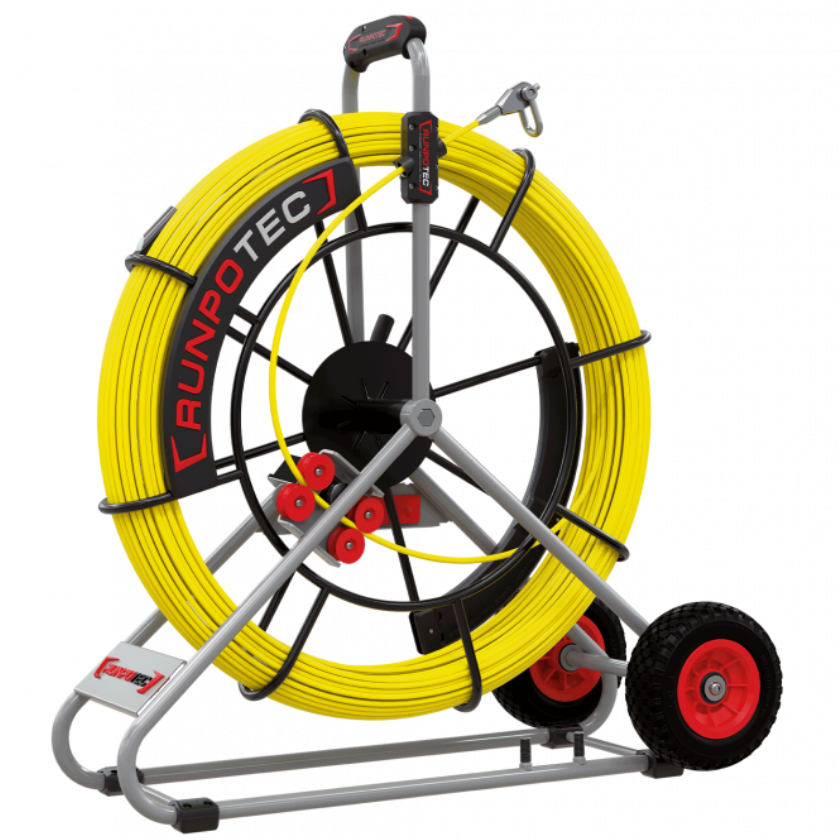

Cable puller glass fibre rod Ø 7.5 mm - RUNPOTEC RTG Ø 12 mm thread with robust steel reel (galvanised/powder coated) Ø 730 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling sleeves, multifunction camera RC 2 and the like. Fibreglass rod total breaking load 3400 kg, total breaking load 400 kg.
Optimal field of application: for pipe diameters 50 mm - 120 mm.
Application film: a short, very informative application film can be viewed by scanning the QR Code or on www.runpotec.com

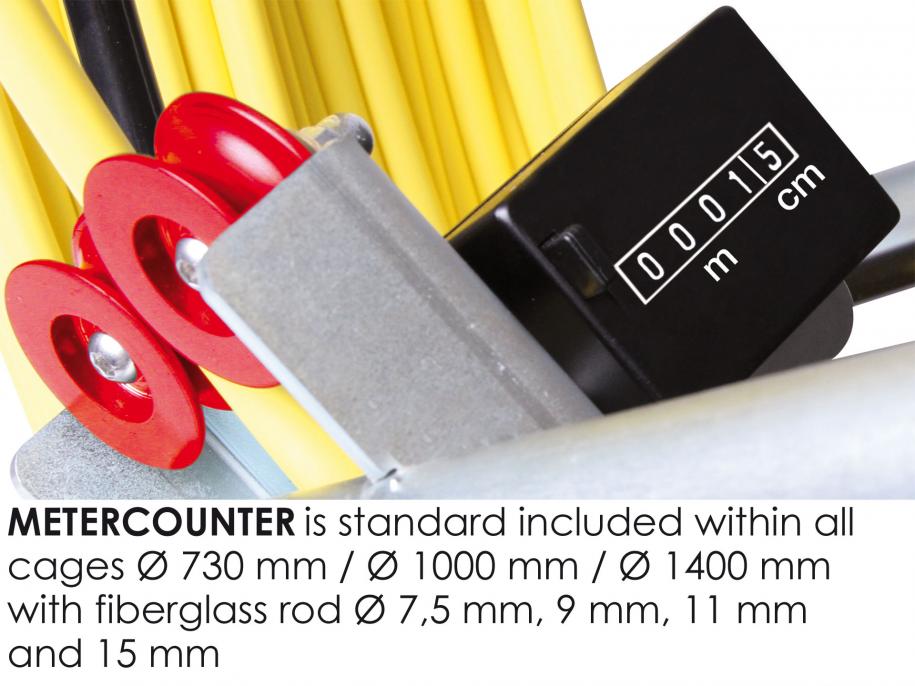

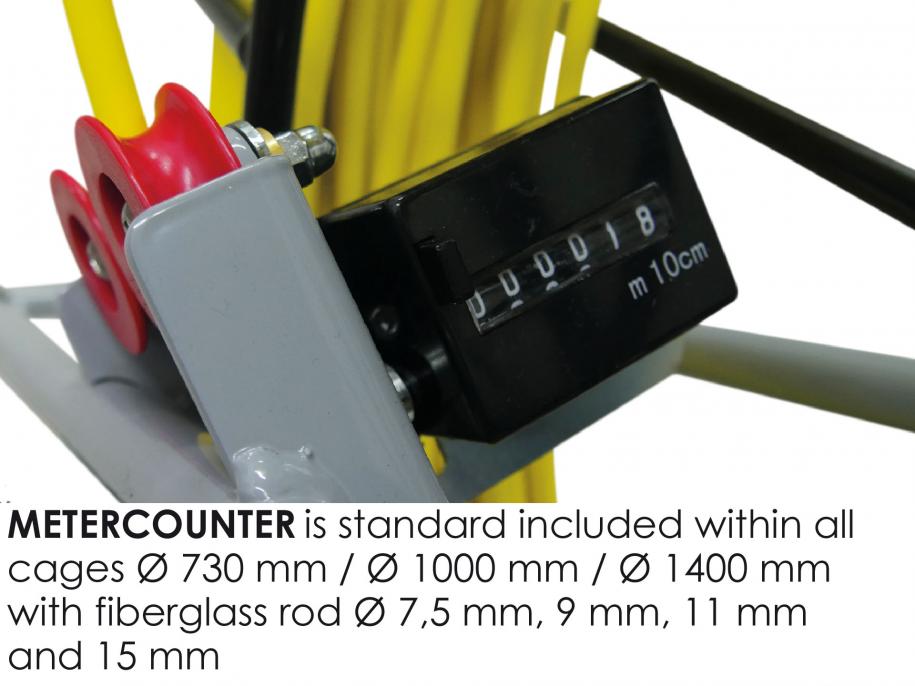

Scope of delivery: 1 piece of glass fibre rod Ø 7.5 mm with steel reel and new double outlet system, end sleeves on both sides (start/end),1 x metre counter, 1 x shackle

ADVANTAGES

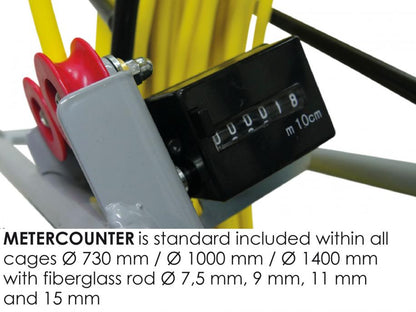

  • incl. steel reel and metre counter

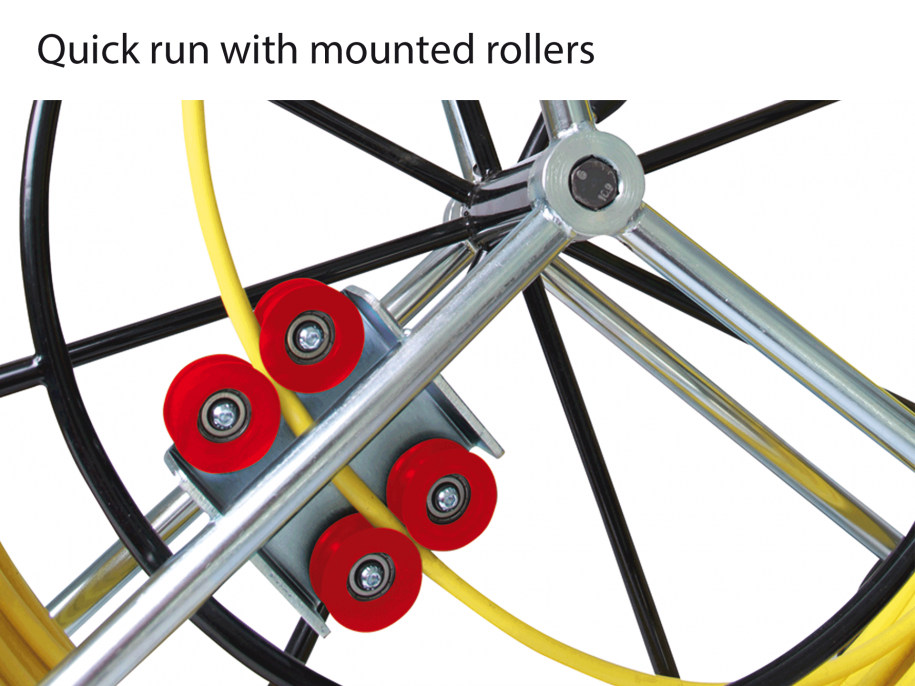

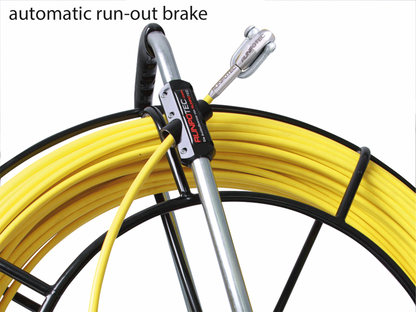

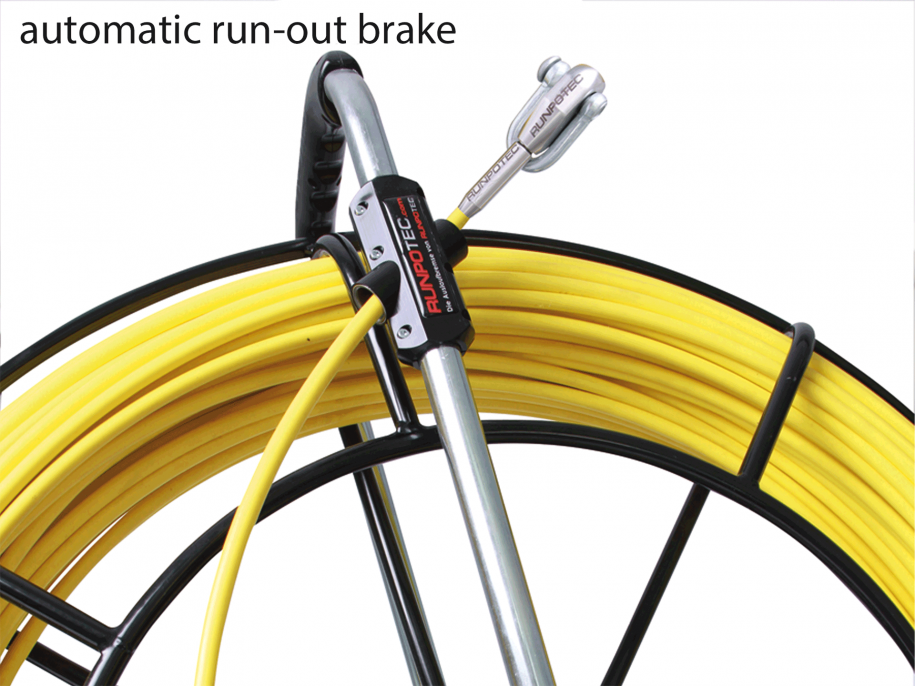

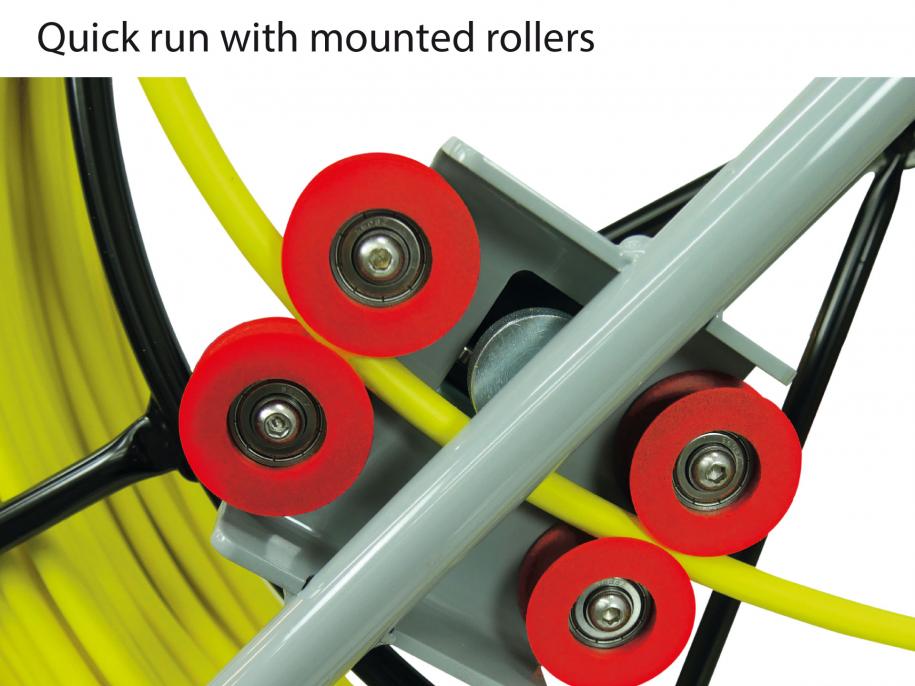

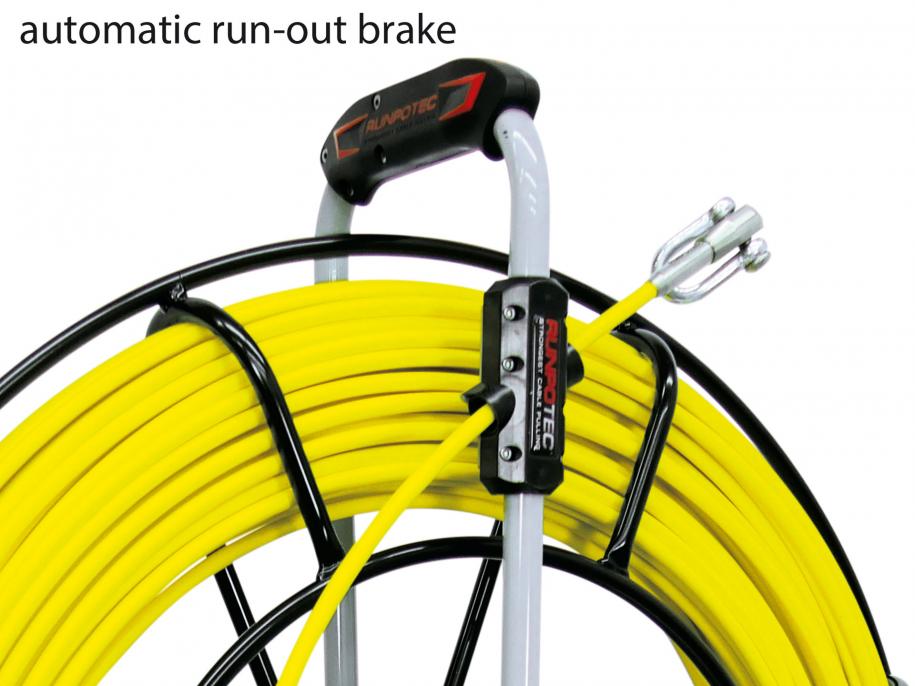

  • Double run-out system (automatic run-out brake and fast run-out)
  • Additional parking brake
  • Glass fibre rod total breaking load up to 3400 kg
  • Total service load 400 kg
  • Bending radius 500 mm

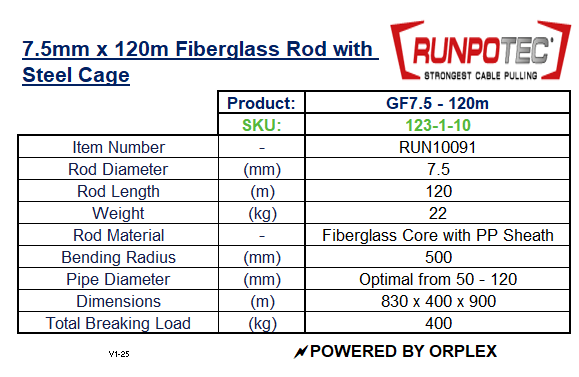

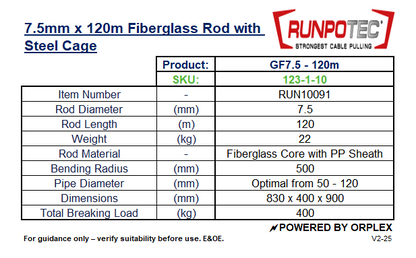

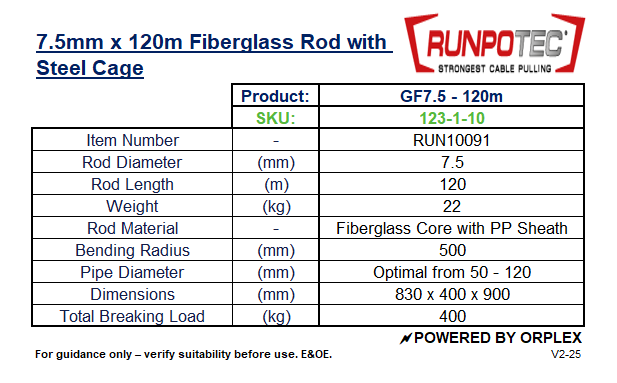

Spec

Dimensions: L 840 x B 920 x H 410 mm
Length: 120 Meter
Bending radius: 500 mm
Recommended tube-Ø: 50 - 120 mm
Weight: 14,80 kg
Total tension load: 400 kg
Material: fiberglass core with PP sheath
Ø Rod: 7,5 mm
EAN-Code: 9120045474428



Tech area

Duct rod data sheetProduct Data Sheet
