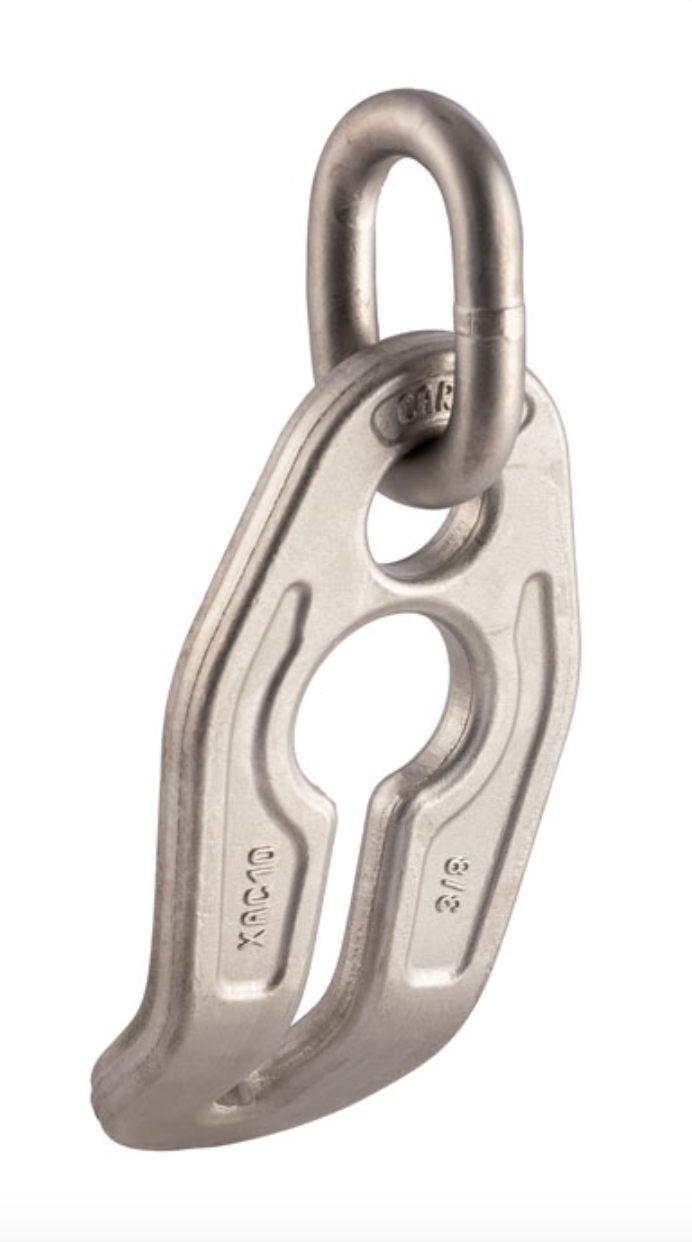

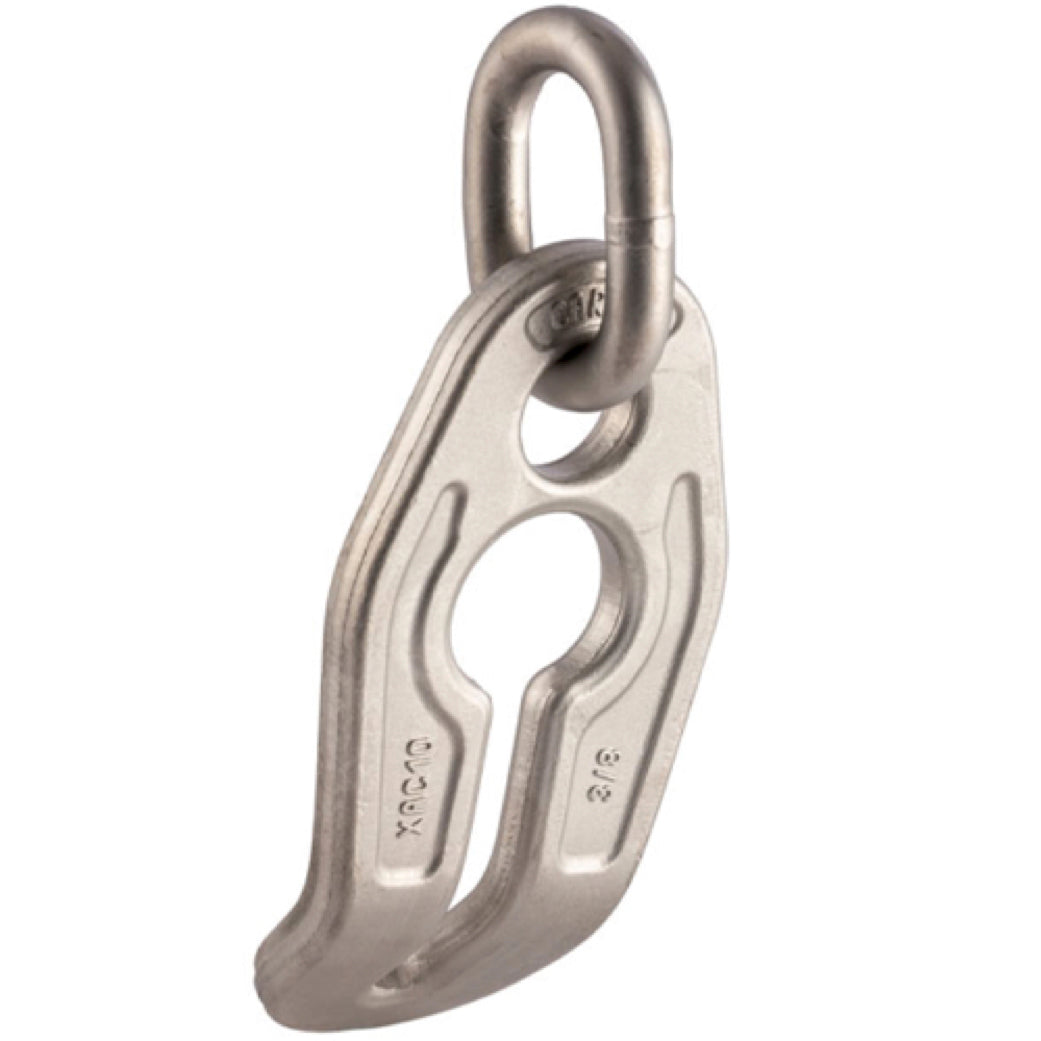

Cartec Grade 6 Shortening Clutch

by Cartec
£119.79

SKU :286-316-1

Chain Diameter
Grade 6 Shortening Clutch – G6SSSC
  • Grade 6, stainless steel, AISI 316L.
  • Surface blasted, uniform smooth finish.
  • Marked with CE, material grade, manufacturers ID, size, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available  2.1    DoC


      Spec

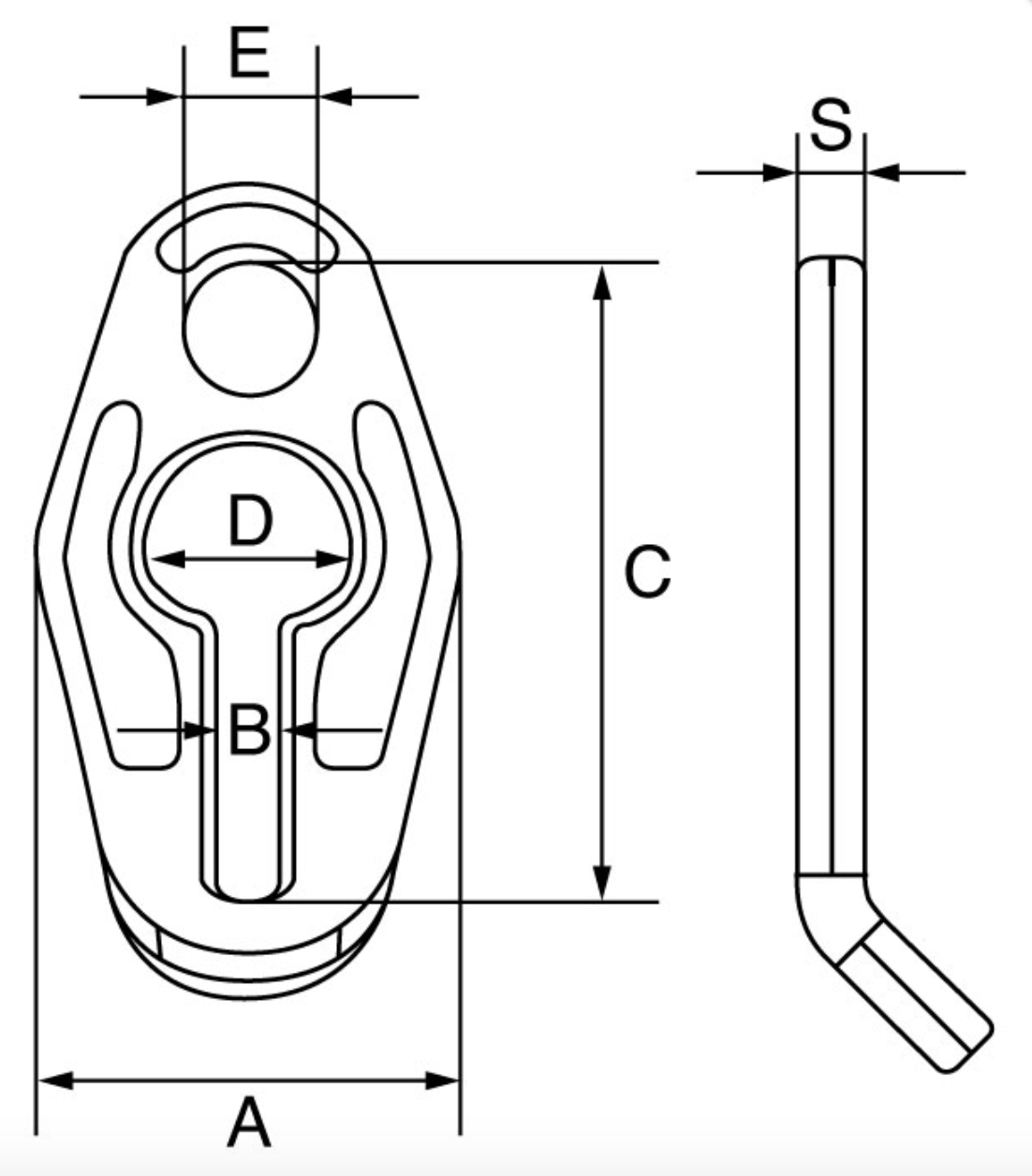

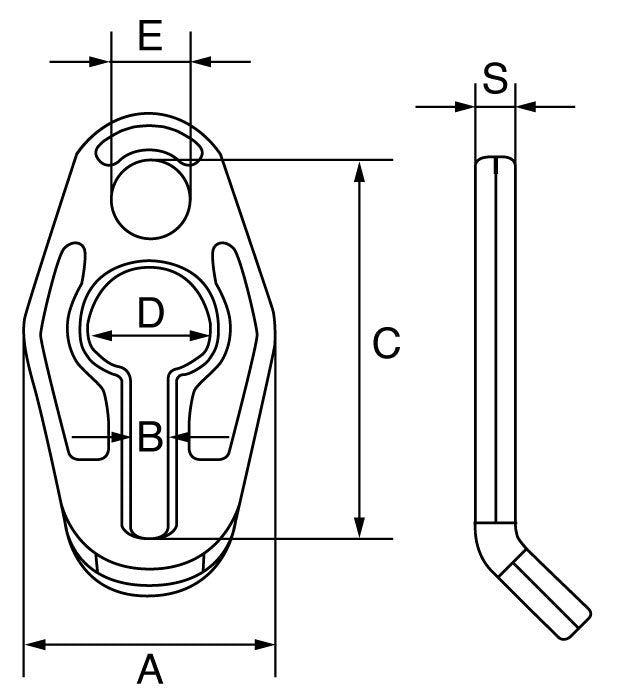

      SKU Product Code Part No. Chain Dia A B C D E S
      mm mm mm mm mm mm mm
      286-316-1 G6SSSC6 C6XAC06 5/6 55 8 81 26 16 8.5
      286-316-2 G6SSSC8 C6XAC08 7/8 71 11 110 34 22 10.5
      286-316-3 G6SSSC10 C6XAC10 10 90 12 135 40 26 13
      286-316-4 G6SSSC13 C6XAC13 13 112 17 170 52 32 16.5
      286-316-5 G6SSSC16 C6XAC16 16 135 20.5 202 64 38 20


      Chain Dia W.L.L. M.P.F. M.B.F. Weight
      mm t kN kN kgs
      5/6 0.9 18 36 0.25
      7/8 1.6 32 63 0.59
      10 2.5 50 99 1.13
      13 4.25 84 167 2.37
      16 6.3 124 248 4.12

       Duct rod data sheetProduct data sheet
