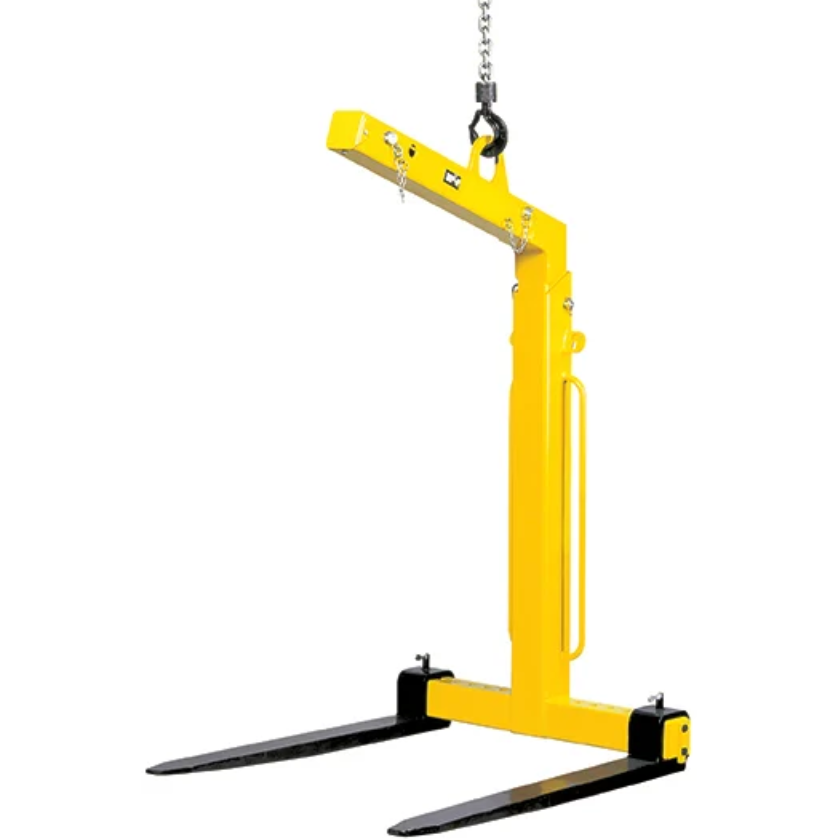

Camlok TKG3.0 vhs Self-Balance Crane Forks - 3000kg Capacity

The TKG-VHS range of crane forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system. Crane forks with self weight balancing* tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines.

The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down. For efficient operation of this mechanism the load must be greater than 20% of the working load limit.

Features

• Factor of safety 4 : 1
• Maintenance free.
• Highly visible safety colour.
• For transporting rings or coils, simply push fork tines together.
• Easily adjustable tines for all pallet sizes.
• Supplied with chain for securing the load.

Info

For the transport of loads above persons (e.g. on construction sites) appropriate security measures against falling loads or parts must be taken.

The load must not exceed the fork length.
