Camlok MR Fixed Multi-Rail Grab – 4 Rail Capacity

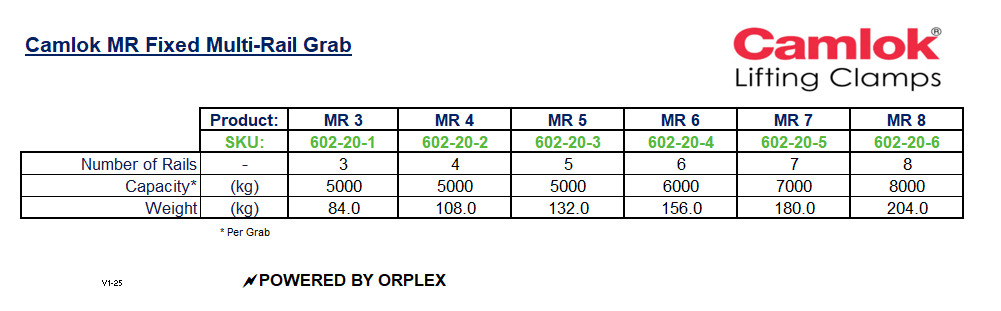

Camlok MR4 Fixed Multi-Rail Grab – 4 Rail Capacity - 5000kg W.L.L.

The MR Multi-rail grabs have been designed to facilitate the fast bulk handling of a specific rail section (details to be advised at time of order).

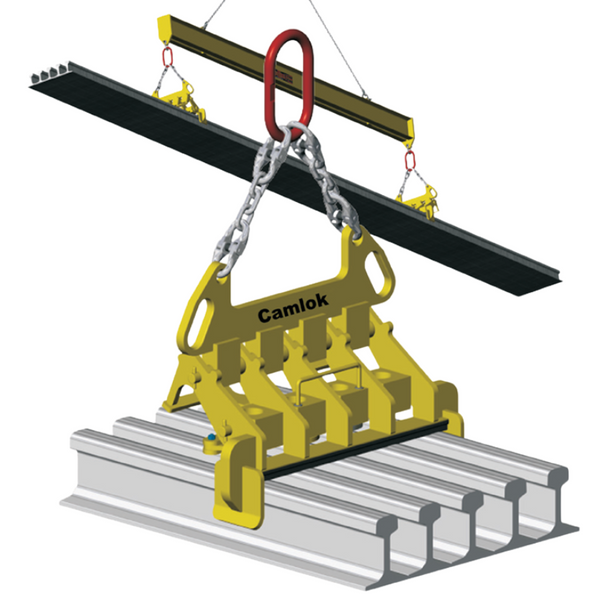

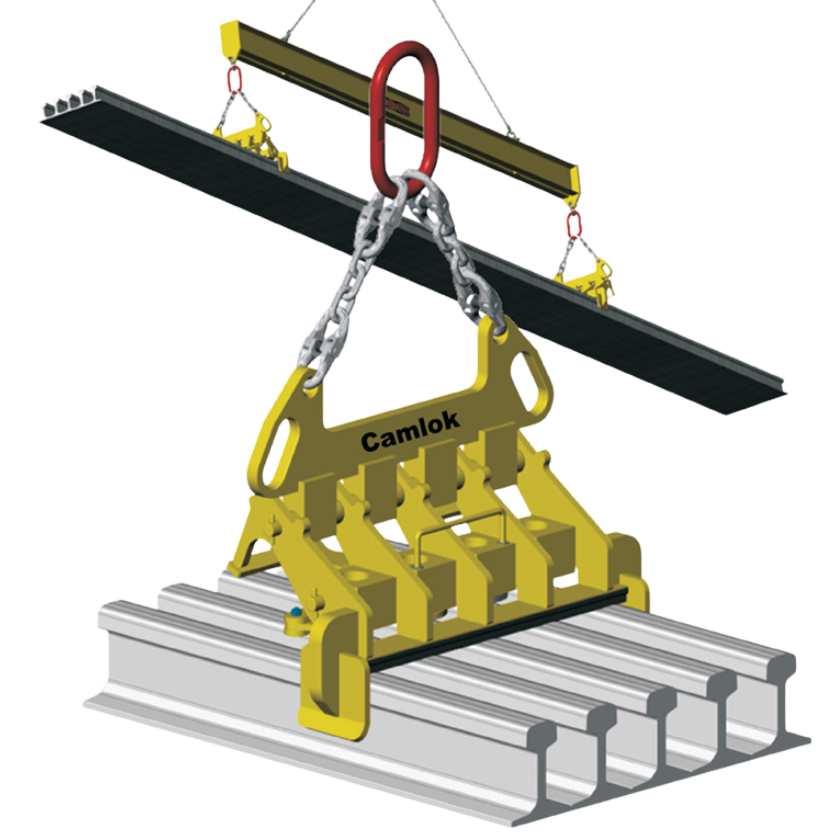

The grabs are locked onto the rails by swivelling toes that locate under the rail-head and top clamp body that rotates in a cam action, pressing a hard rubber lined horizontal beam onto the top of the rail-head. The rubber lined contact beam prevents marking or damage.

Two clamps are recommended at centres of 50% to 60% of rail length for rails up to 20 mtr long. For rails longer than 20 mtr., three clamps at centre distance between outer clamps of 65% to 75% of rail length must be used. (NB. Clamps must be within rated WLL).

Rails to be lifted must be stacked with bottom flange toes touching. All rails must be of the same rail section size.
