Camlok BTG 3000kg Concrete Pipe Lifting Clamp

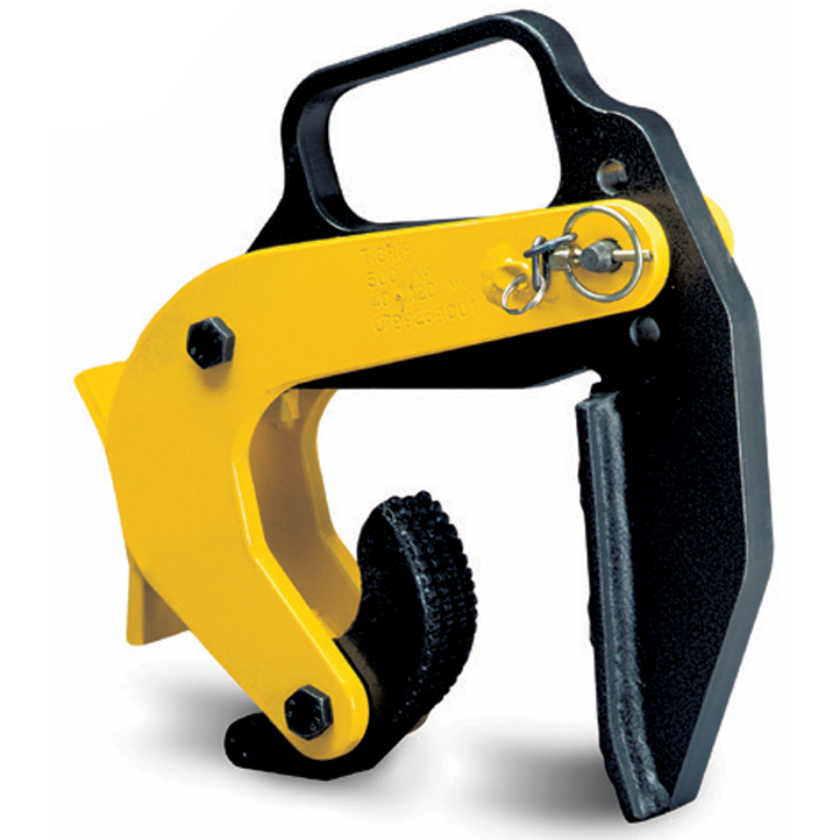

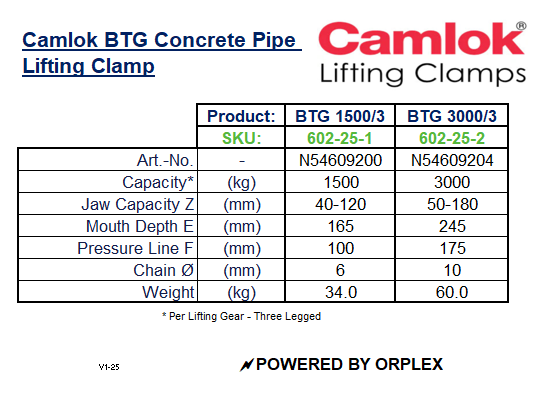

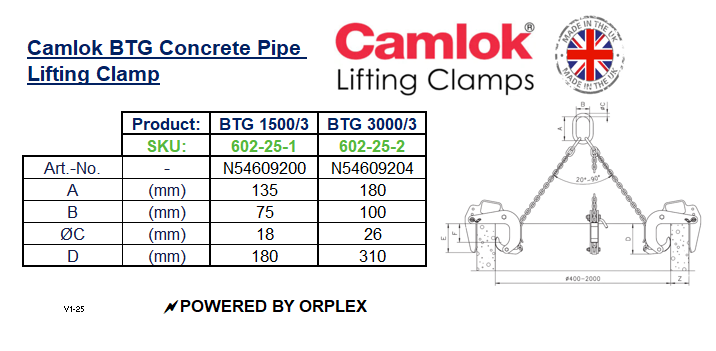

Camlok BTG3000/3 Concrete Pipe Lifting Clamp - 3000kg Capacity

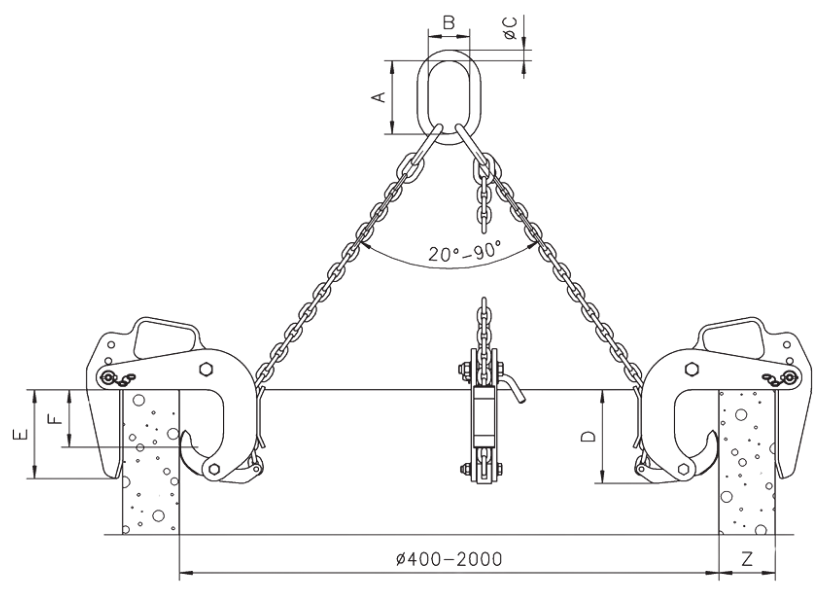

The BTG concrete pipe lifting clamps are sold in sets of three, and they come complete with a 3-legged chain sling (the working load limits shown are based on a set of three clamps).

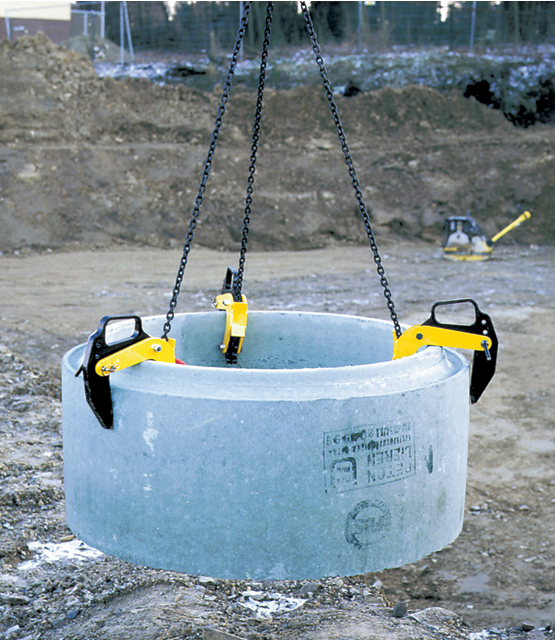

They are designed for the vertical transportation of concrete pipe sections with a diameter of up to 2000mm.

Attachment and removal of the clamps from the pipes is extremely easy due to the simple and straightforward design.

Features

• Solid design
• Safety factor 4:1
• Simple and safe handling

• Large jaw capacity

• For the toughest operating conditions

Note: For concrete pipes according to DIN 4034
