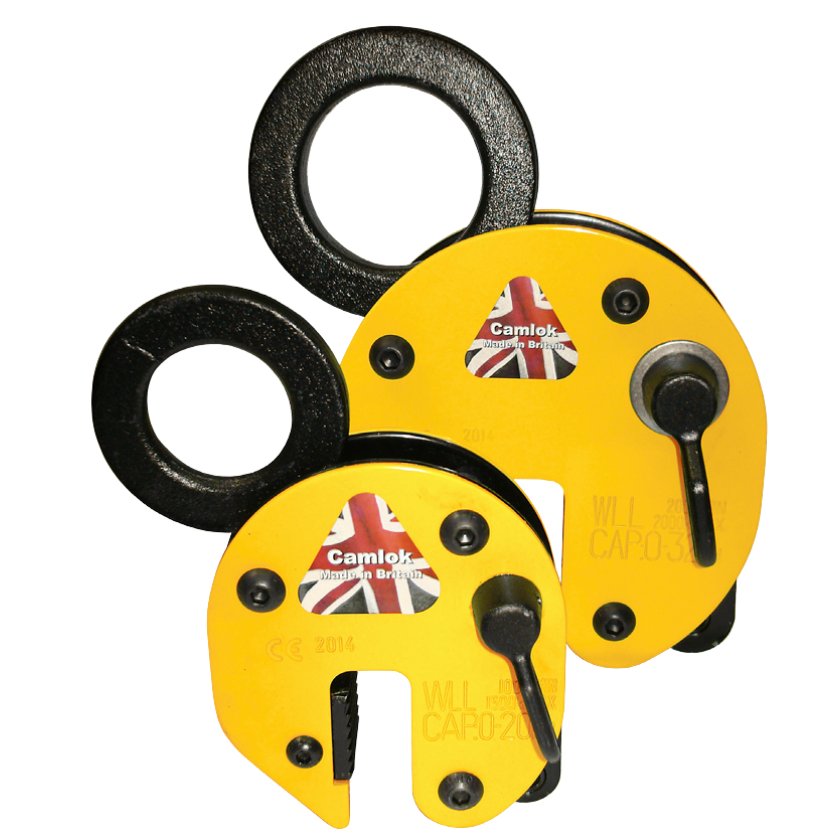

Camlok 92-1500 Standard Plate Clamp with Safety Lock - 1500kg W.L.L

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°.
They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long plates. Units are supplied with a hook ring as standard, link fitting option available.

Function

The jaw is opened and closed with the locking lever except for the 92-500 which uses a positive spring loaded cam. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the jaw.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs must be done by a trained person.

Note: The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300
