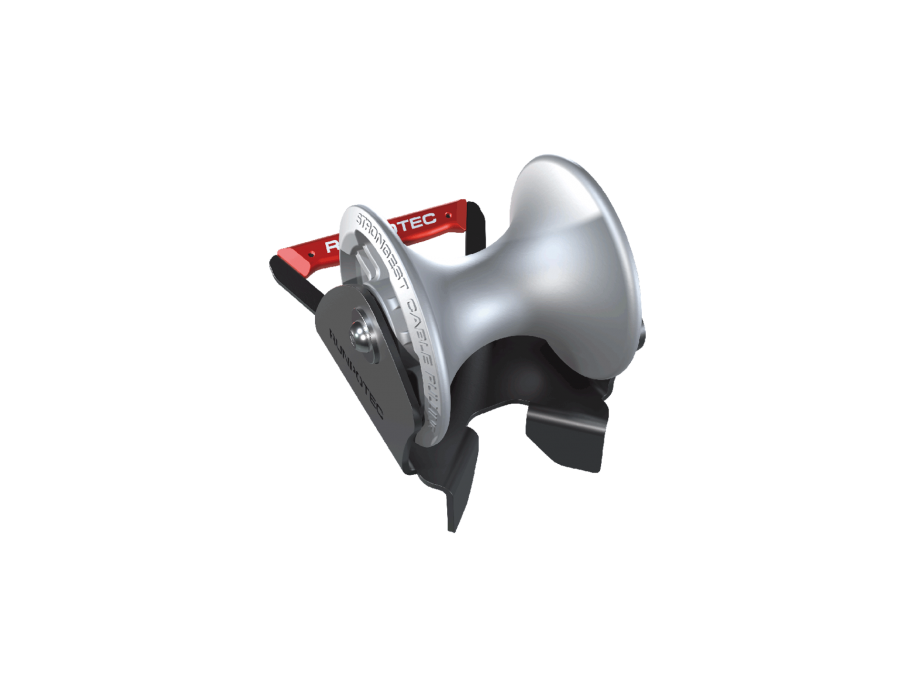

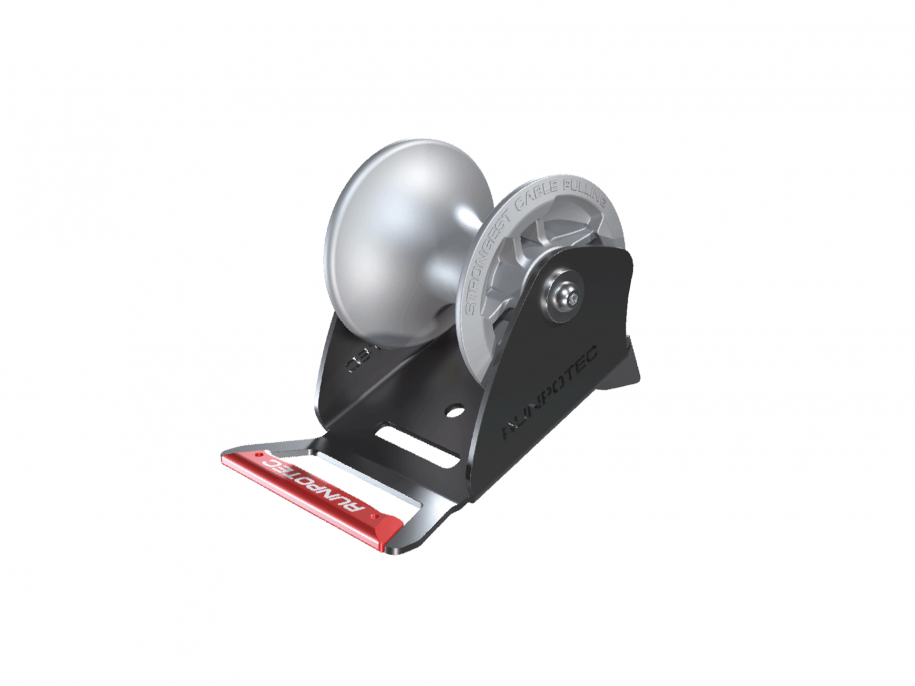

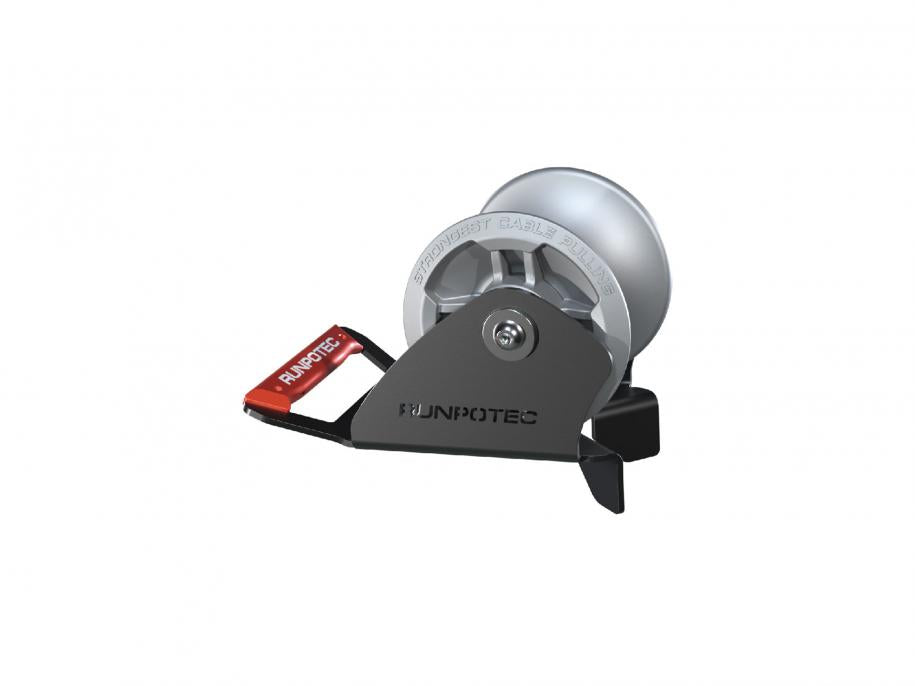

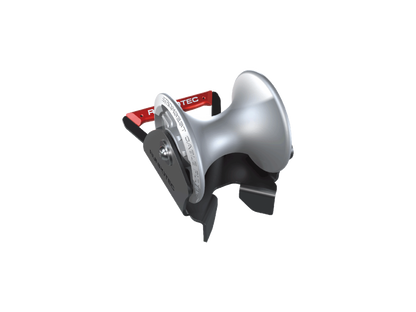

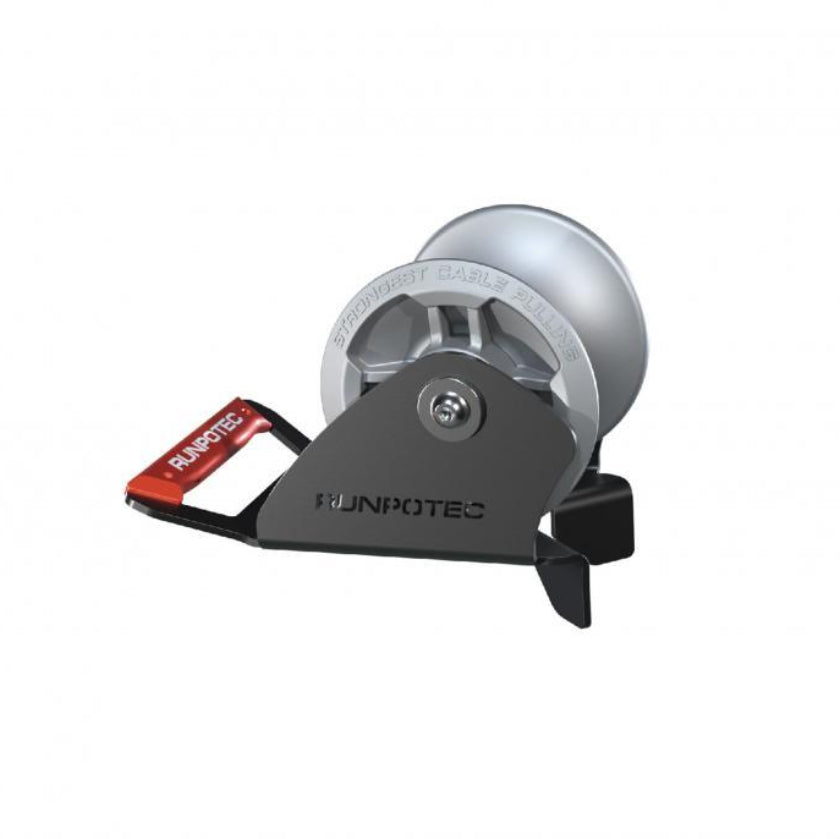

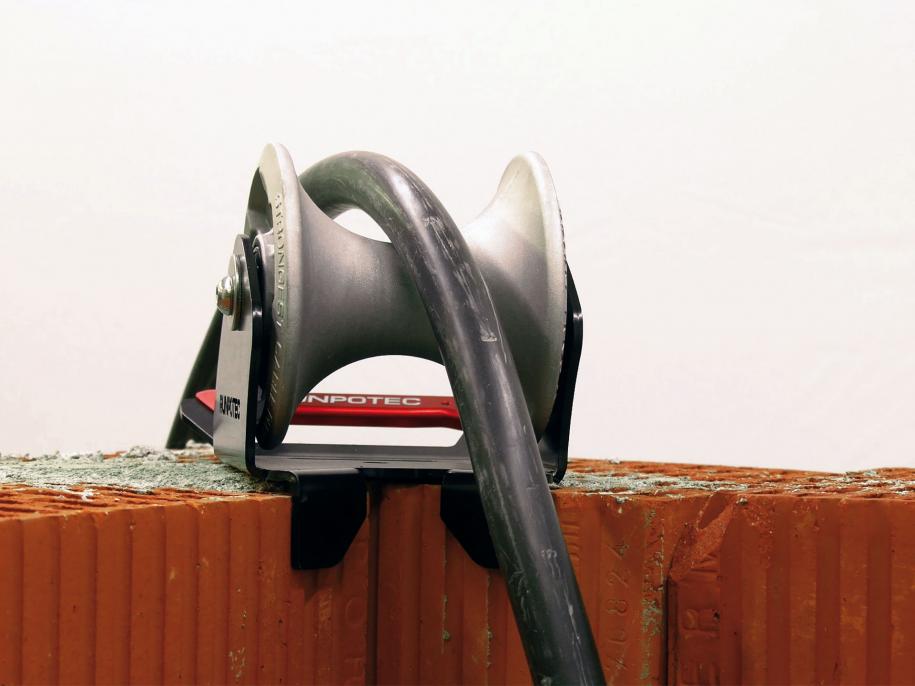

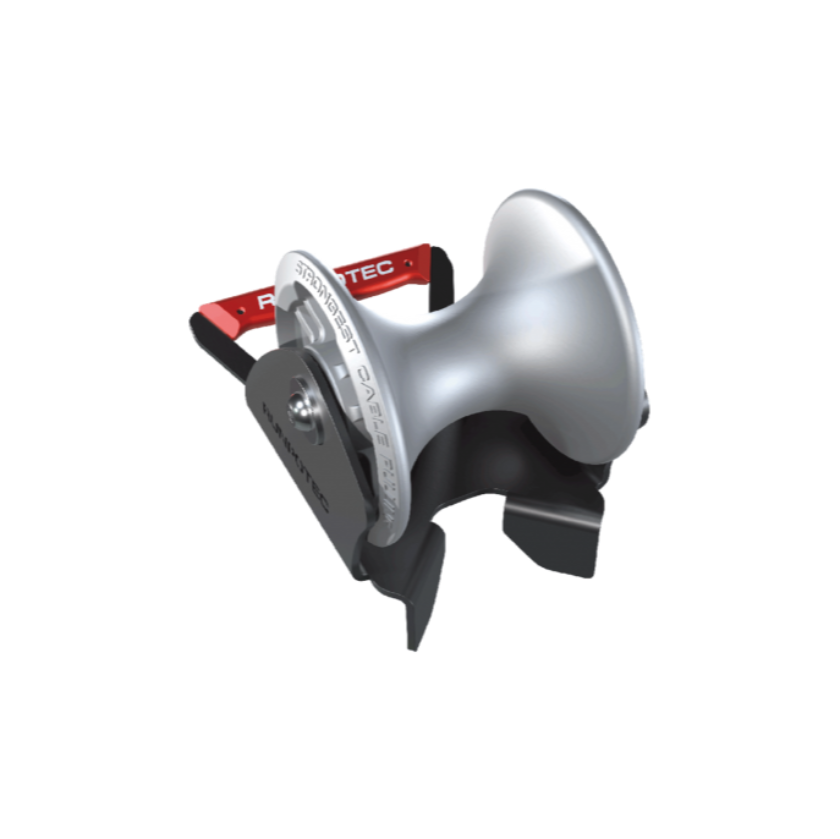

The cable guide roller - shaft inside edge is ideally suited for mounting on the edge of a shaft or on steps to pull cables gently around corners with the least possible resistance. A right-angled stop is provided by the two lugs. It can be secured in place with a belt or screws via the assembly opening. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life.

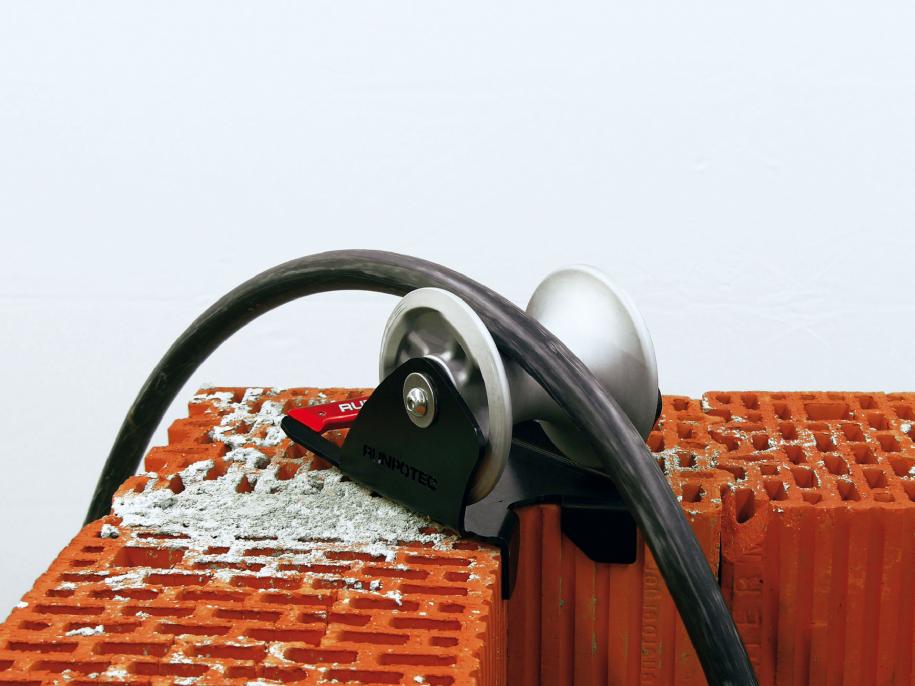

Optimum area of application: for mounting on the edge of a shaft or on steps to pull cables gently around corners
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 x cable guide roller - shaft inside edge
ADVANTAGES
-
Aluminium heavy-duty rollers with stainless steel ball bearings
-
Robust metal frame
-
CDP coating
-
Ergonomic aluminium carrying handle
- Load bearing capacity 1.500 kg
Spec
| Dimensions: | L 220,5 x B 155 x H 163 mm |
| Weight: | 3,03 kg |
| Material: | Roller: Aluminium / Frame: Steel |
| Load bearing capacity: | 1500 kg |
| Max. cable diameter: | Ø 100 mm |
| Roll diameter: | Ø 130 mm |
| EAN-Code: | 9120045476378 |
