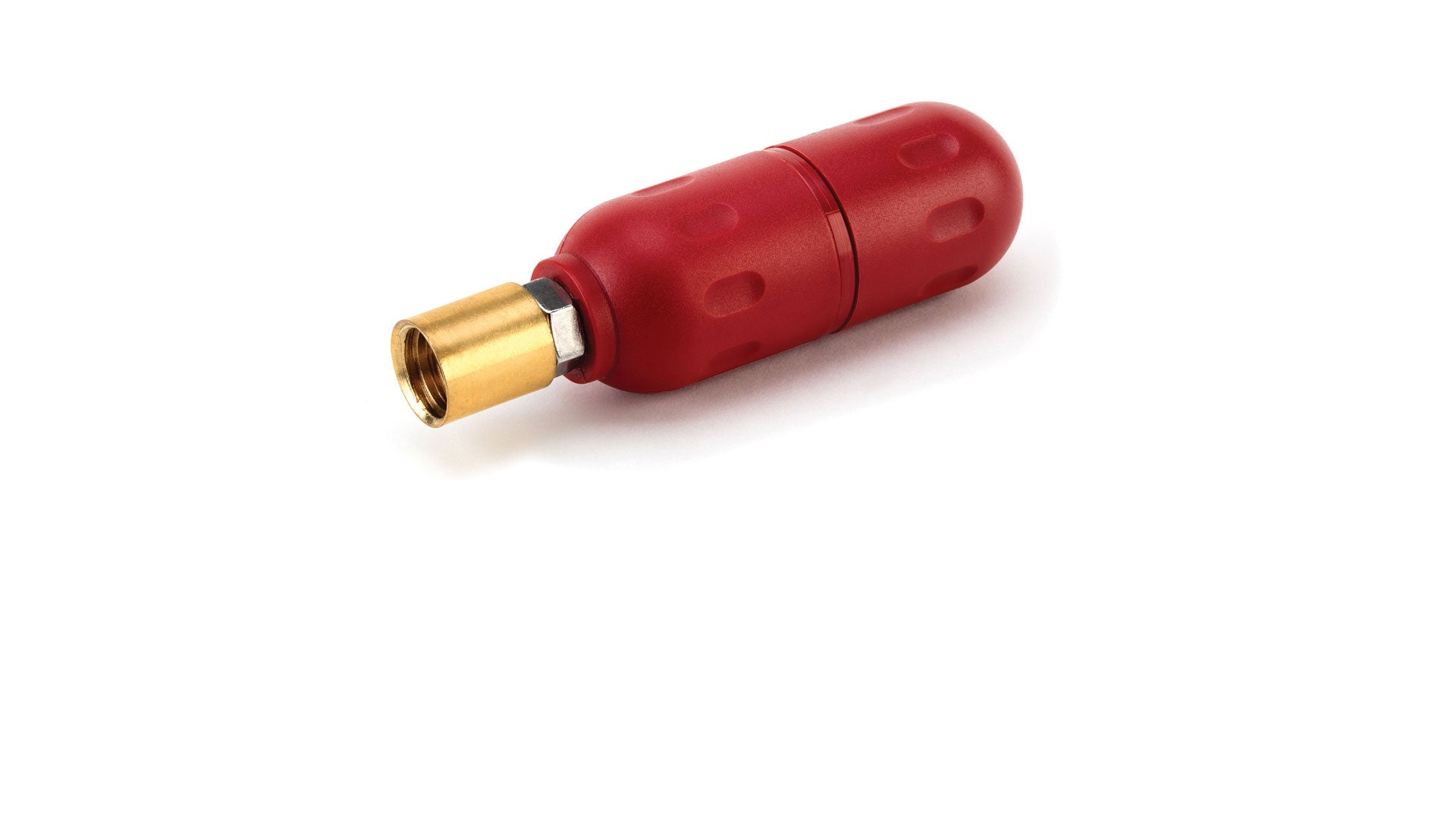

C.SCOPE - METAL PIPE SONDE - RED 640Hz

The C.Scope Metal Pipe Sonde is a small, self-contained low frequency transmitter that can be used inside metallic pipes.

To address the problems of detecting the position of a blockage or other relevant feature within a metal pipe, the C.Scope Metal Pipe Sonde is specially designed with a low frequency signal output that is capable of being transmitted through the metal pipe walls to the surface.

This makes it ideal for finding the position of blockages in metal pipes or for use with a camera and is powerful enough to be detectable at up to 5 metres depth with a C.Scope Precision Pipe and Cable Locator (dependant on pipe material and wall thickness).

** As standard the Sonde is supplied from the manufacture with drain rod adaptor.

Our Duct rod adaptor can be found HERE

OVERVIEW

• Red case to identify as the Low Frequency Sonde.
• 512Hz or 640Hz transmit signal allowing detection and tracing by a C.Scope Precision Pipe and Cable Locator.
• Simple to use.
• Very robust.
• Single AA battery operation.
• Fully weatherproof design to IP68.
• Compatible with most drain rods.
• Resin sealed electronics.

Specification

Product Name
Metal Pipe Sonde

Part Numbers
YIRS-512 and YIRS-640

Operating frequency
Transmits 512Hz and 640Hz respectively

Range
Up to 5 metres with a C.Scope Precision Pipe and Cable Locator (dependant on pipe material and wall thickness).

Dimensions
39mm diameter.
121mm length.

End fitting
M10 threaded stud supplied with 7 t.p.i. rod fitting (other adaptors are available).

Battery
1 x AA (IEC type LR6) typically giving up to 25 hours intermittent use at 20C.
