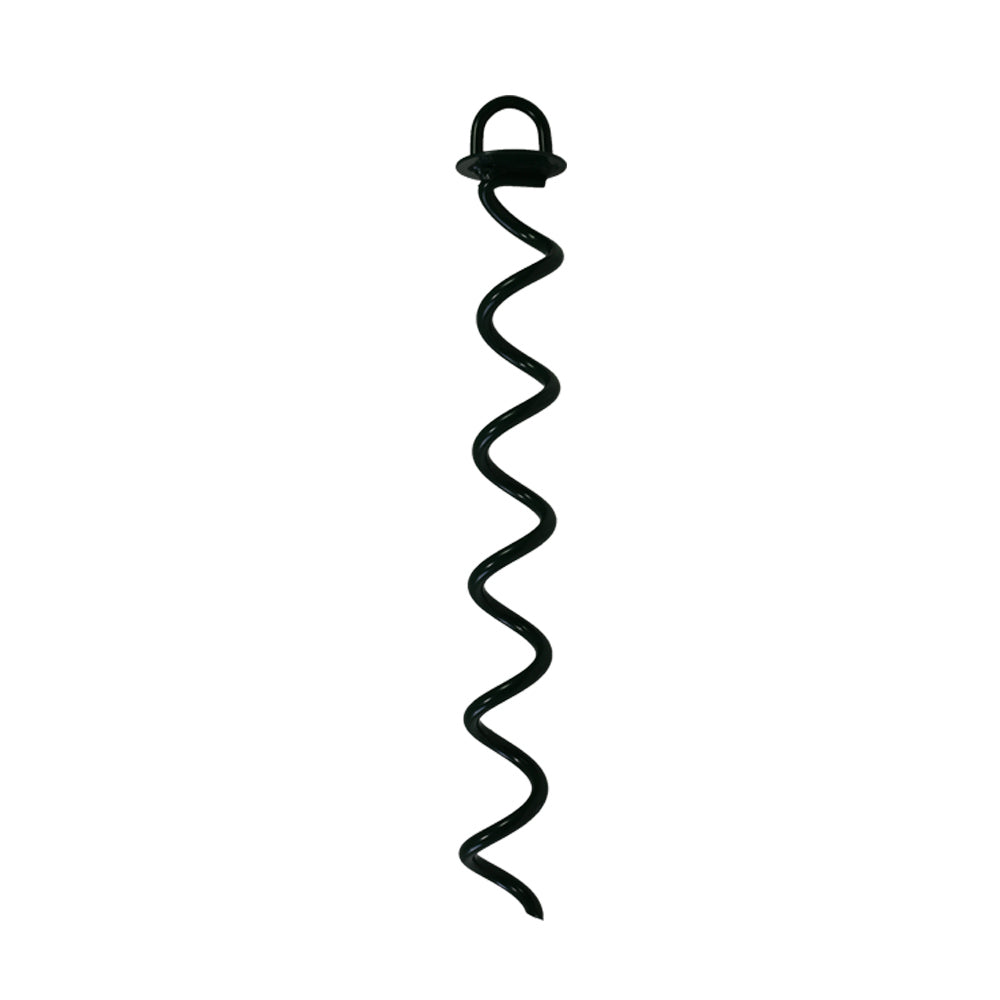

400mm Ground Anchor

£5.50

SKU :270-1-3

This type of anchor can be rapidly deployed and removed by using a simple tightening bar or specially designed brace, saving time and labour. Lloyds British tested in wet ground conditions the 400mm holds to 325kg with a weight of 1.2.kg. The 400mm Universal ground anchors provide extremely tough anchorage. Made up of three key parts. The top U bolt which penetrates the base plate and is spot welded from underneath. The Spyral is attached to the underneath of the base plate by as continuous seam weld on both sides of the spyral. The spyral when fully inserted compresses the base plate to the ground, the combined elements create an extremely strong and durable design, to hold in worst case ground conditions.

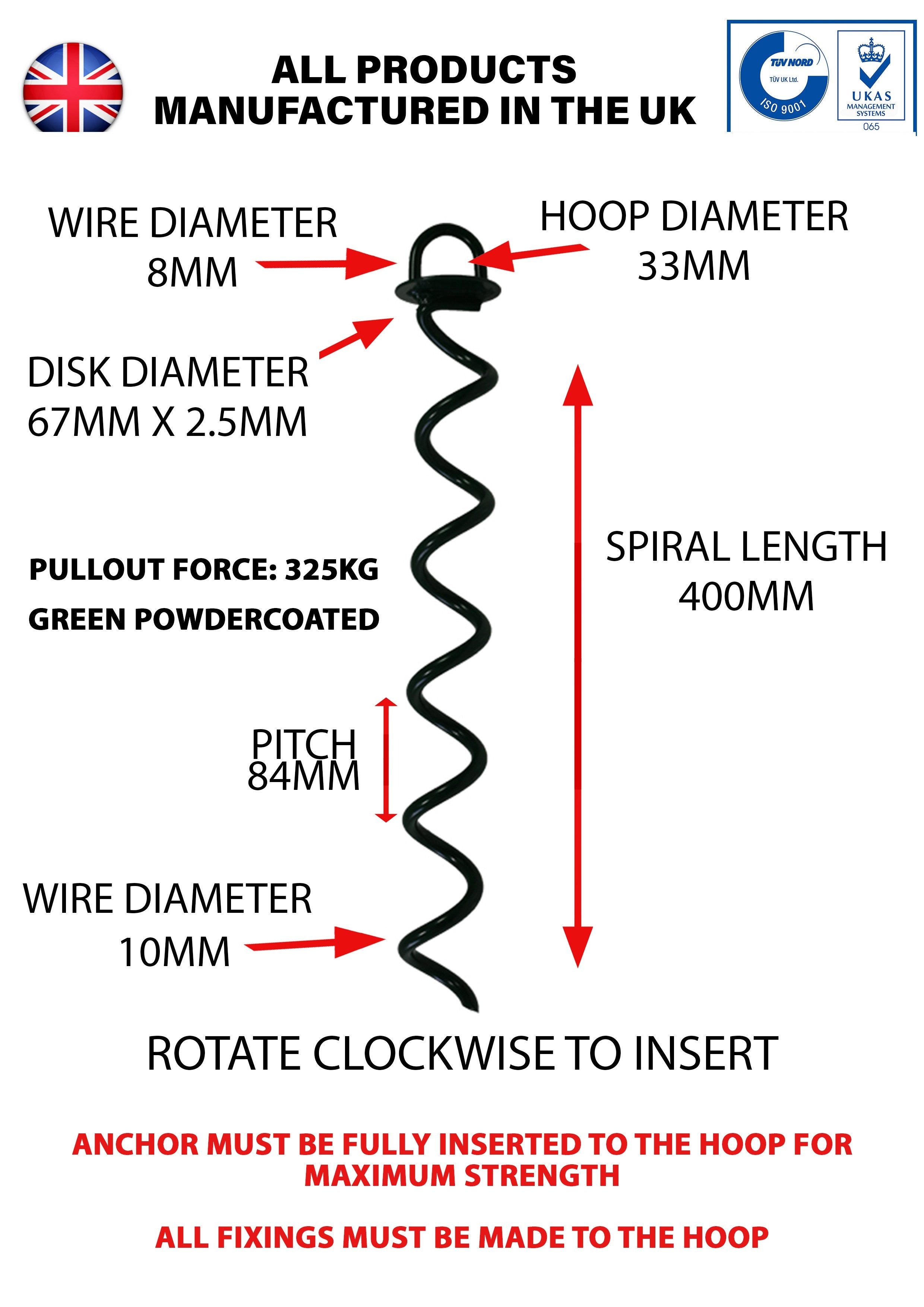

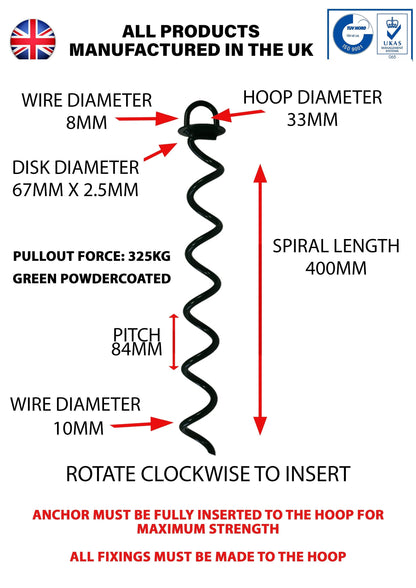

    Spec

    HOLDING POWER : 325KG
    GREEN POWDER COATED

    Our 400mm Ground Anchor can be utilised for a wide variety of purposes:

    CANAL BOATS
    TENTS AND TAUPAULINS
    LIVESTOCK

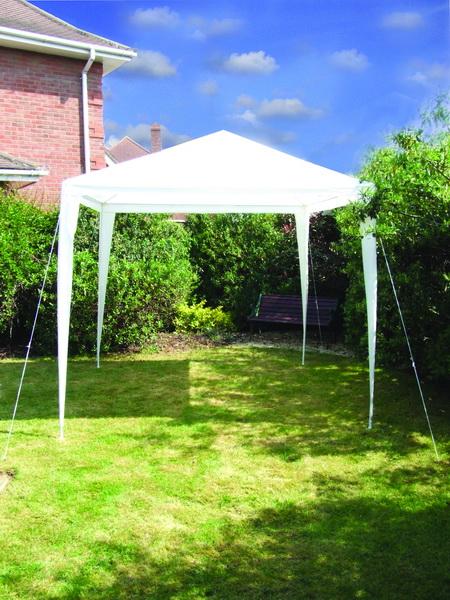

    SMALL MARQUEES
    SWINGS ETC

    This anchor can be rapidly deployed and removed by using a simple tightening bar or specially designed brace, saving time and labour for you when setting this item up!

    The spiral when fully inserted compresses the base plate to the ground, the combined elements create an extremely strong and durable design, to hold in worst case ground conditions.

    Weight 1 kg
    Dimensions 40 cm
