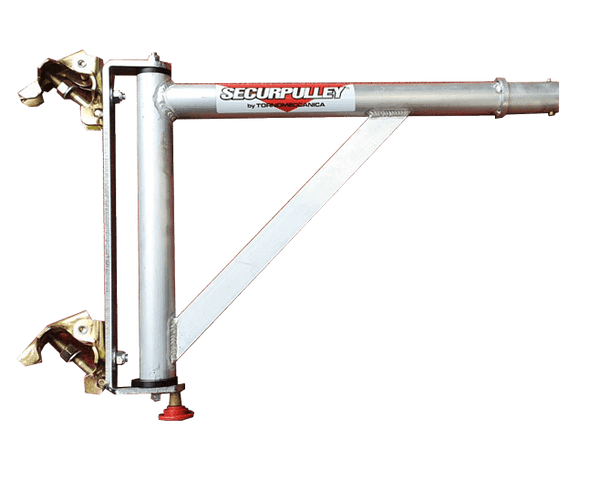

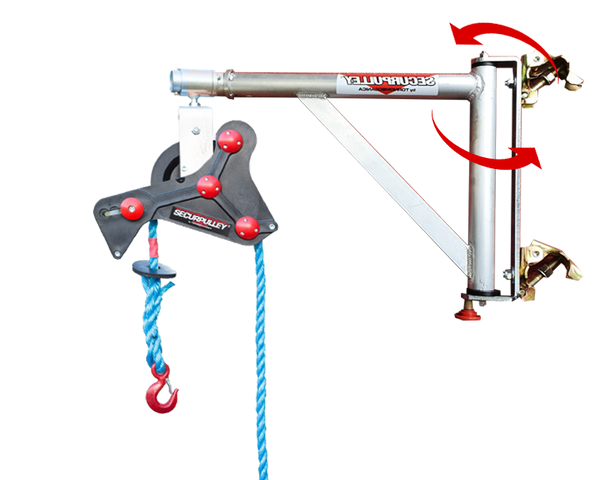

Securpulley Gin Wheel with Straight Arm Bracket, Swivel Arm Bracket and 30m Polyproplene Rope

This is the Securpulley Swivel Arm or the Slewing Aluminium Model (Gin Wheel). It comes with the straight arm while also coming with the swivel arm, as the straight arm is standard. The Securpulley safety pulley is a Tornomeccanica patent, intended to revolutionise the way you do your scaffolding work. This means you will also be eliminating the risk of a fall of the suspended loads.

The exclusive automatic braking system will stop the lifted load as the rope is being released by the operator. The Securpulley is the contractors choice for lifting or lowering building materials onsite or at high working heights.

Without risk and with the possibility to interrupt the lifting for rest with heavy loads or high working heights.

The connection clamp made of hot printing and zincated steel assures maximum safety in case of emergency break of load thanks to its underforming property.

• Support load: 9.8Lbs
• Maximum working load: 110Lbs / 50kg
• Suitable for: Standard 48mm Scaffold Tubes.
• Minimum diameter rope used on a Securpulley has to be 18mm - anything smaller and the brake will not hold in position.

Includes the Securpulley Gin Wheel with Fixing Bracket and Kit Bag (294-7-1), the Swivelling Scaffold Bracket (294-7-3) and 60m Prolyprolene Rope with Hook (294-8-1).
