Pulley Man - The Portable Winch and Hoist

Pulley Man - The Portable Winch and Hoist

The Pulley Man is a portable winch that can hoist up to 600kg (1322 lbs). The Pulley Man has no cable drum but the cable is led through the winch. Due to this, there is no limitation on the length of the wire rope. The Pulley Man can be used by simply attaching the swivel hook to any construction available. There is no electricity needed, one can just simply use a cordless drill to lift up to 600kg or pull loads up to 3000kg (6600 lbs).

Four Pulleyman models are available to purchase as follows:

• SKU 169-1-1 : 300kg Unit with 12m Length Rope
• SKU 169-1-2 : 600kg Unit with 12m Length Rope
• SKU 169-1-3 : 300kg Unit with12m Length Rope AND Kit
• SKU 169-1-4 : 600kg Unit with 12m Length Rope AND Kit

Product specifications for Pulleyman

• Light weight and portable
• Suitable to lift loads up to 600kg (using PM600 model)
• Suitable to pull loads up to 3000kg*
• No electricity needed
• Easy to set up with suspension hook
• Can be used with a cordless drill and power drill
• Possible to rotate the load 360°
• Can be used in 3 positions

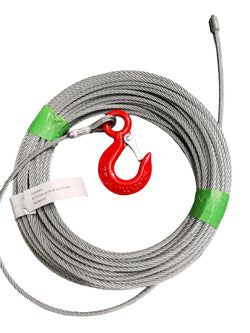

• Standard rope length 12 meters (possible up to 50 meters)
• Patented self-braking reduction brake
• In compliance with EN14492-2, EN ISO 12100
• Paint thickness is 100 micron in 1 layer and in compliance with DIN/ISO 12944
• Paint classification C1M – RAL7035 (grey)

Suitable for any light work such as:

• Maintenance
• Lifting work at a construction site
• Repairs
• Installations
• Jobs around the house

Options: As well as the 300kg or 600kg unit with a 12m rope supplied as standard, it is also available in kit form (with the following accessories included:

• robust case with foam L: 457 W: 367 H: 183 – Brand: Explorercase
• Cordless drill 18V – 70 Nm – Brand: Hikoki
• 2 Li-ion batteries 18V – 2,5 Ah – Brand: Hikoki
• 1 charger – Brand: Hikoki
• 2 shackles type G-210 – Brand: Crosby
• 1 sling, length 1 meter

Downloads

Product data sheet
