The Working Load Limit (WLL) is the maximum mass or weight that a piece of rigging equipment can safely lift or handle under normal conditions. It is determined by dividing the equipment’s Minimum Breaking Strength (MBS) by a safety factor (typically ranging from 4:1 to 5:1 or higher).

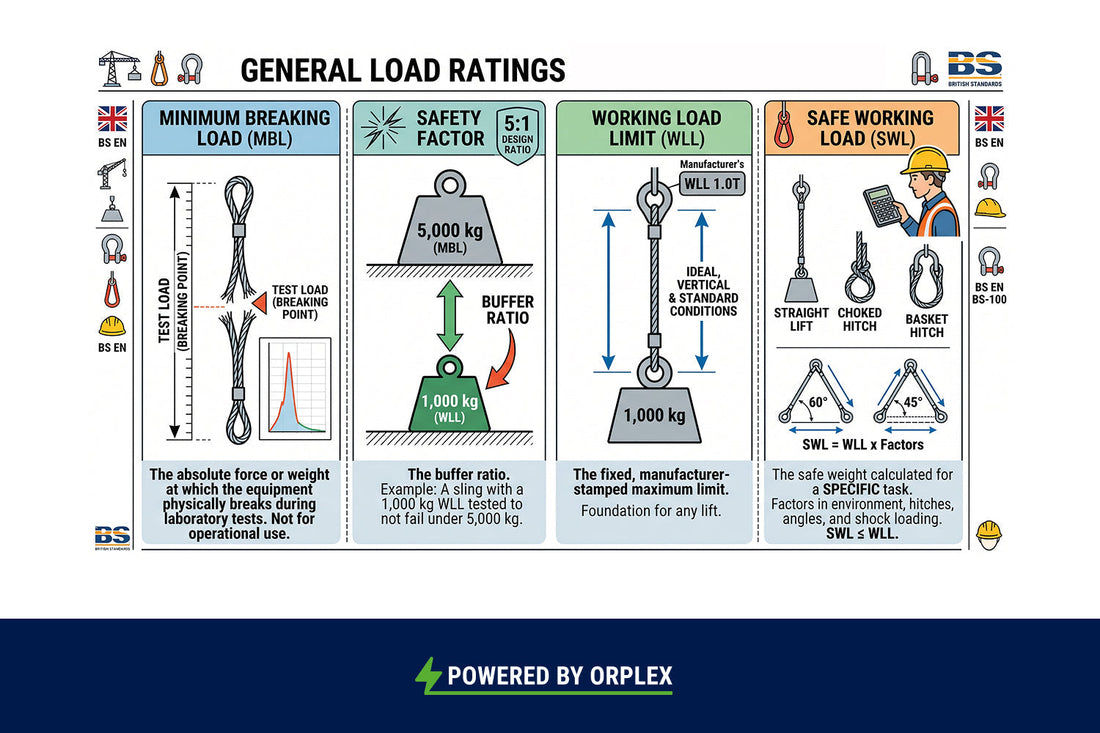

General Load Ratings
-
Minimum Breaking Load (MBL): The absolute force or weight at which the equipment physically breaks during laboratory tests.
-
Safety Factor (SF): The buffer ratio. For example, a 5:1 ratio means a sling with a 1,000 kg WLL was tested to not fail under 5,000 kg.
-
Working Load Limit (WLL): The fixed, manufacturer-stamped maximum limit. It is the foundation for any lift and assumes ideal, vertical, and standard operating conditions.
- Safe Working Load (SWL): The safe weight an engineer or rigger calculates for a specific task. SWL factors in environmental elements, hitches, angles, and shock loading, and is always less than or equal to the WLL.
Why the distinction matters
Equipment should never be pushed past its WLL. The safety factor is meant to protect against catastrophic failure from incidental strain, not to be utilized as extra, usable capacity.
Factors That Lower Your Lift Limits
When rigging for a lift, you rarely use the WLL value straight off the manufacturer's tag because of specific on-site variables:
- Rigging Angles: Lifting at an angle drastically increases the tension on individual slings or chains.
- Hitch Type: Choker hitches squeeze the load and reduce the WLL, while basket hitches support the load better and can sometimes increase it.
- Environmental Hazards: Exposure to extreme heat, chemicals, or abrasive edges decreases the integrity of the gear.
