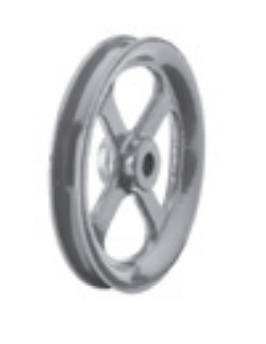

No. 28 Lightweight Rope Sheaves made of Cast Iron

Name: No. 28 Lightweight Rope Sheaves made of Cast Iron
Brand: ORPTECH
Price: 12.72 GBP
Availability: OutOfStock

ORPTECH SKU: 182-28-130

1 2

Lightweight Rope Sheaves made of Cast Iron (Model No. 28) With narrow, deep, turned groove, drilled shaft hole, with straight spokes, compatible with fixed rollers No. 161. Range of pulley capacity... Read More

£29.76

Sale TODAY'S PRICE £29.76

Out of stock (0)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more orptech pulleys sheaves

Description

Lightweight Rope Sheaves made of Cast Iron (Model No. 28)

With narrow, deep, turned groove, drilled shaft hole, with straight spokes, compatible with fixed rollers No. 161.

Range of pulley capacity from 125kg to 150kg

Range of pulley diameter from 80mm to 130mm

Specification

SKU		182-28-80	182-28-100	182-28-130
Sheave External Ø	mm	80	100	130
Groove Base Ø	mm	67	83	108
Groove Radius	mm	4.5	5.5	6.5
Groove Depth	mm	6.5	8.5	11
Rim Width	mm	13	16	19
Bore for Bolt	mm	8	10	12
Hub Length	mm	17	19	23
Hub Ø	mm	20	2	28
Rope Ø Max.	mm	8	10	12
Load Capacity (in kg).	kg	125	130	150
Weight (in kg) approx.	kg	0.18	0.3	0.48
