ISC Compact Rigging Pulley for up to 13mm Rope - MBS 85kN

Name: ISC Compact Rigging Pulley for up to 13mm Rope - MBS 85kN
Brand: ISC
SKU: 298-19-1
Price: 110.83 GBP
Availability: InStock

ISC SKU: 298-19-1

1 1

ISC Compact Rigging Pulley for up to 13mm Rope - MBS 85kN

ISC Compact Rigging Pulley for up to 13mm Diameter Rope - 85kN At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new... Read More

ISC SKU: 298-19-1

£110.83

Sale TODAY'S PRICE £110.83

In stock (2)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more isc rigging pulleys

Description

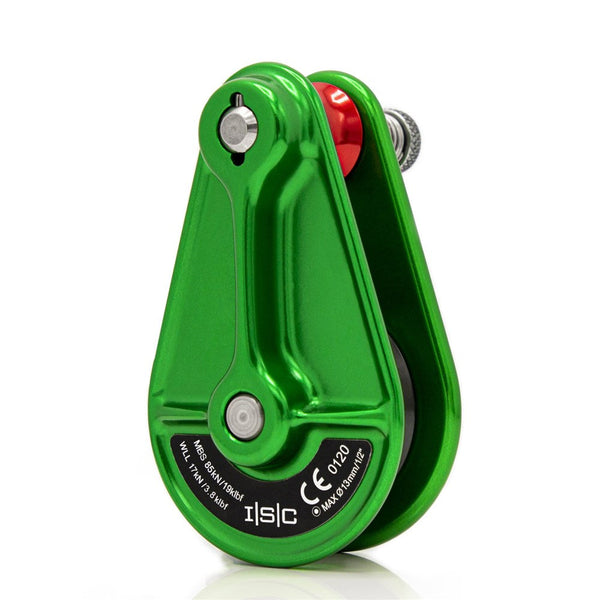

ISC Compact Rigging Pulley for up to 13mm Diameter Rope - 85kN

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

The Pulley plates are made from hot forged Aluminium and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

Working Line (Grey Sheave):
13mm (1/2") - 38kN (8500lbf)

Topping Strop (Red Sheave):
16mm (5/8") - 74kN (16650lbf)

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.

Spec

(MBS) Minimum Breaking Strength (kN): 85
(MBS) Minimum Breaking Strength (lbf): 19000
Pulley wheel colour: Grey
Anchor wheel colour: Red
Wheel material: Aluminium
Body finish: Anodised
Colour: Green/grey
Weight (grams): 490
Weight (ounces): 16
Height (mm): 125
Height (inches): 5
Width (mm): 76
Width (inches): 3
